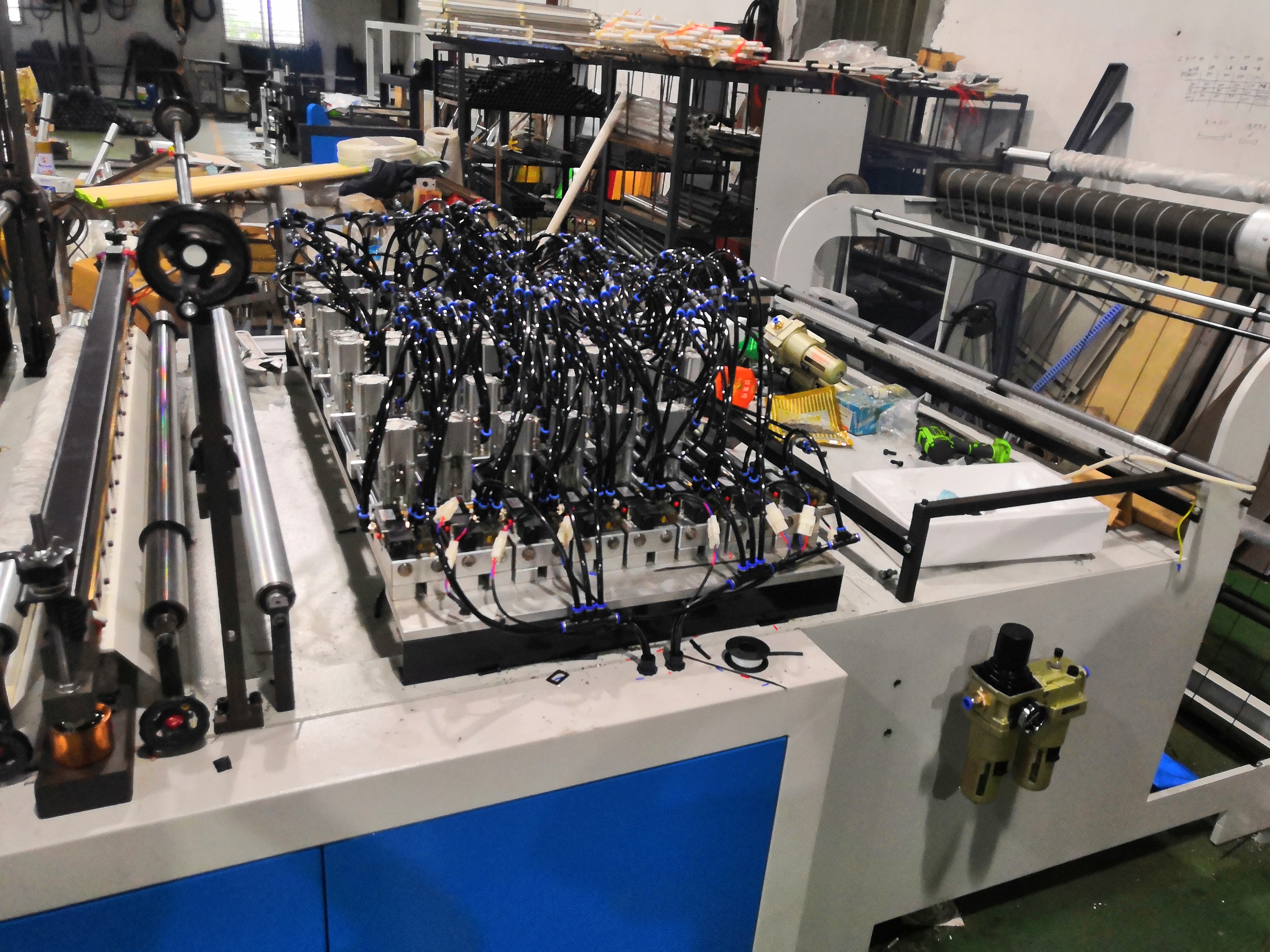

India Customer's multi holes punching bottom sealing bag making machine is ready for dispatch.

48 holes.

for making the grap bag, seedling breeding bag, grow bag, nursery bag, etc... agriculture using .




Hope Shanghai EPI situation will be better soon.




微信图片_20200915100600微信图片_20200915100603IMG_20190814_144116IMG_20190814_144121


Use:

The machine is suitable for cold-cutting of such plastic films as LDPE and HDPE etc. And it is a kind of ideal equipment for specially producing vest bags of natural color and multicolor



Features and characteristics:

1. The computer controls automatically, increase the efficiency, save the man-power and time.

2. The bags from the roll of film to the finished product, it is a one-time finish.

3. Fixed-length stepper motor, torque motor automatic control tension.

4. Adopts the heat sealing & cold cutting device.

5. It can match a punching machine to use.(optional )



The main technical variables:

Model

ZC-1000FQ

Max. Making Width(mm)

950

Max. Making Length(mm)

1000

Making Thickness(mm)

0.01-0.025

Speed of Bag-making(pc/min)

20-120

Total Power

6kw

Weight of machine

1000kg

dimension(L×W×H

2800×1800×1900mm



The main list of detailed configuration:

main motor

1.75 kw(China)

stepping motor

37n/m(China)

frequency converter

1.75 kw(China)

feeding motor

2.2kw(China)

electrical appliances

(China) CHNT

computer

(China) TOUCH SCREEN

heat sealing knife

750mm(China)

cutting knife

750mm(China)

static box

16kv(China)

static bar

820mm*2(China)



Accessory tools:

1. 40 pieces springs,

2. 1 piece oil gum,

3. 1 piece introduction of the frequency inverter,

4. 1 piece introduction of the computer,

5. 1 set open spanner,

6. a set of inner hexagon,

7. a across screwdriver,

8. a slotted screwdriver and so on.


With turn-over seal knife can make twin seal
