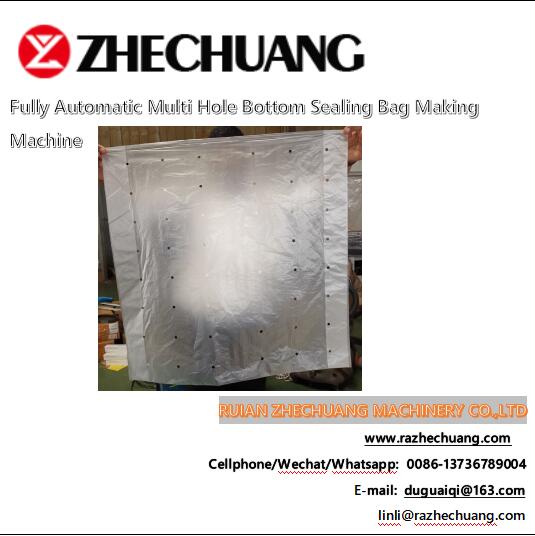

FULLY AUTOMATIC MULTI HOLE BOTTOM SEALING BAG MAKING MACHINE

FULLY AUTOMATIC MULTI HOLE BOTTOM SEALING BAG MAKING MACHINE
Availability:
  • ZC-FQ1000

  • ZHECHUANG

  • 847780000

Product Description

1000 Model STEEL FRAME ONE LAYER HEAT SEAL COLD CUTTING BAG MAKING MACHINE

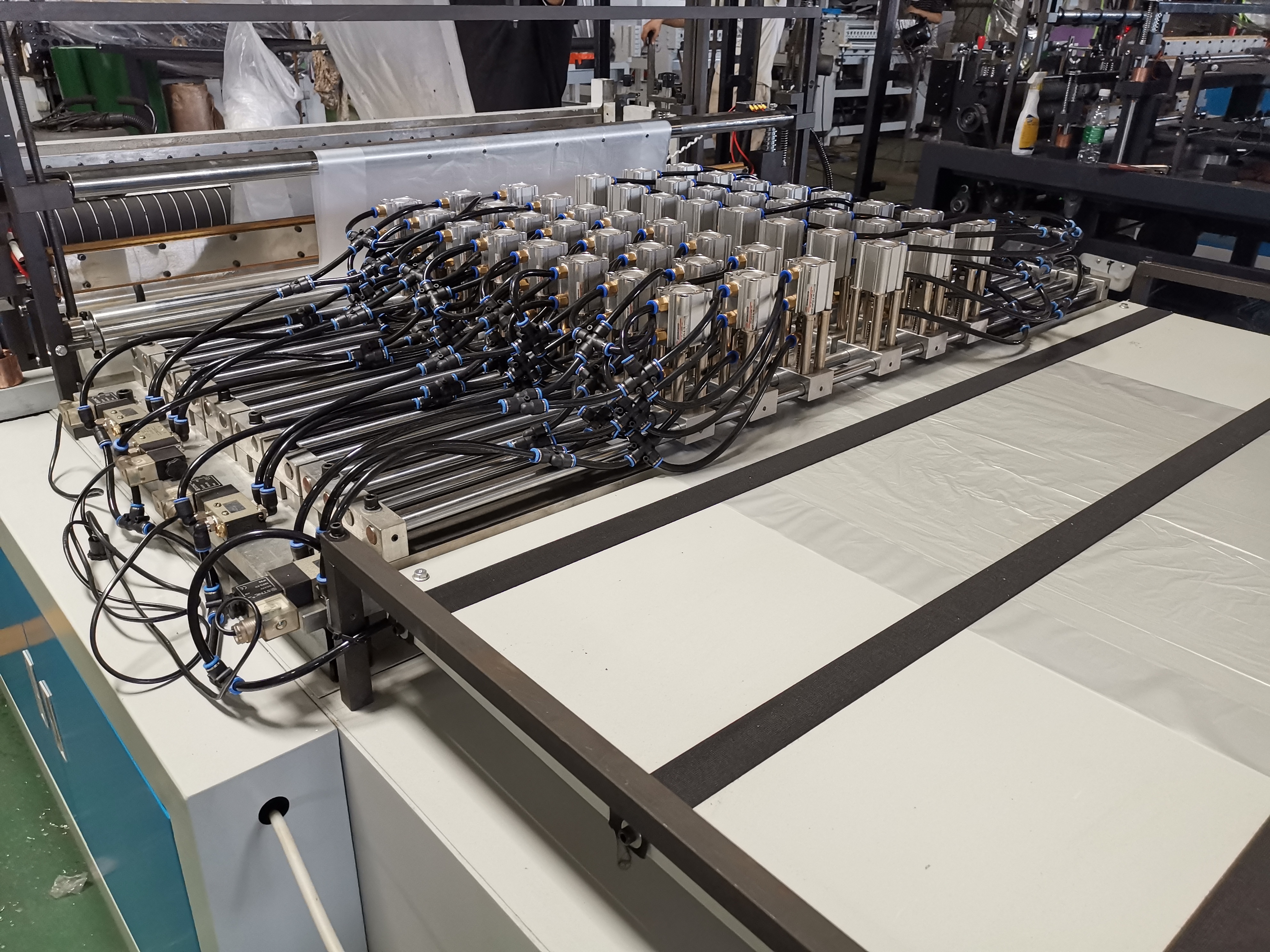

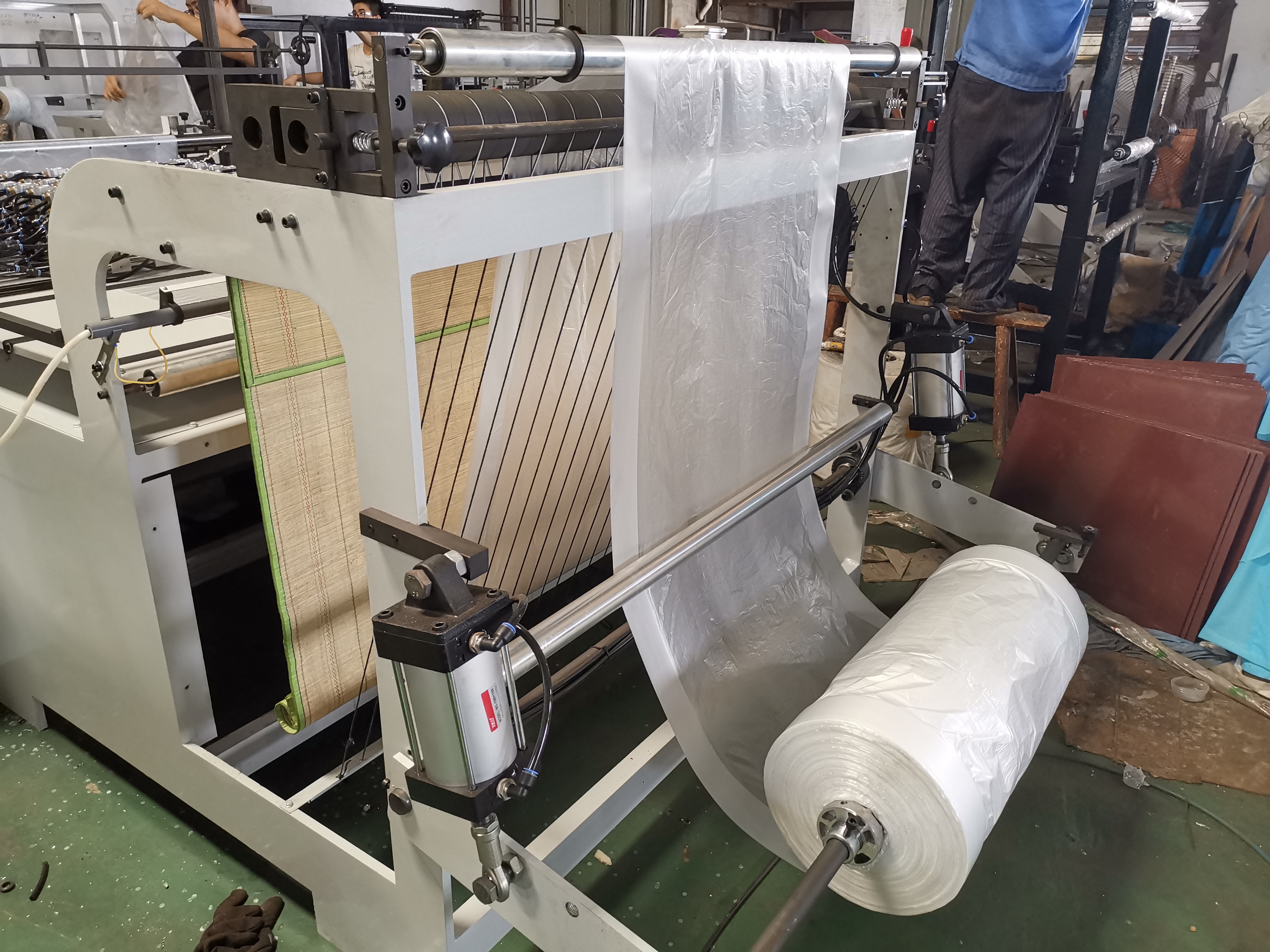

multi holes bottom sealing bag making machine微信图片_20200915100600IMG_20190814_144116IMG_20190814_144121



Use:

The machine is suitable for cold-cutting of such plastic films as LDPE and HDPE etc. And it is a kind of ideal equipment for specially producing vest bags of natural color and multicolor

Features and characteristics:

1. The computer controls automatically, increase the efficiency, save the man-power and time.

2. The bags from the roll of film to the finished product, it is a one-time finish.

3. Fixed-length stepper motor, torque motor automatic control tension.

4. Adopts the heat sealing & cold cutting device.

5. It can match a punching machine to use.(optional )

The main technical variables:

Model

ZC-1000FQ

Max. Making Width(mm)

950

Max. Making Length(mm)

1000

Making Thickness(mm)

0.01-0.025

Speed of Bag-making(pc/min)

20-120

Total Power

6kw

Weight of machine

1000kg

dimension(L×W×H

2800×1800×1900mm

The main list of detailed configuration:

main motor

1.75 kw(China)

stepping motor

37n/m(China)

frequency converter

1.75 kw(China)

feeding motor

2.2kw(China)

electrical appliances

(China) CHNT

computer

(China) TOUCH SCREEN

heat sealing knife

750mm(China)

cutting knife

750mm(China)

static box

16kv(China)

static bar

820mm*2(China)

Accessory tools:

1. 40 pieces springs,

2. 1 piece oil gum,

3. 1 piece introduction of the frequency inverter,

4. 1 piece introduction of the computer,

5. 1 set open spanner,

6. a set of inner hexagon,

7. a across screwdriver,

8. a slotted screwdriver and so on.

With turn-over seal knife can make twin seal
