Fully Automatic Snack Food Packaging Bag Converting Machine

ZCZD-E600 FULLY AUTOMATIC STAND UP POUCH MAKING MACHINE- double rewinder system

- double third film insert stand up pouch
- double single sheet film fold stand up pouch
- double zipper bag system
- 5 servo motors - panasonic ,Japan ( cutter using servo motor too,double cutter system)

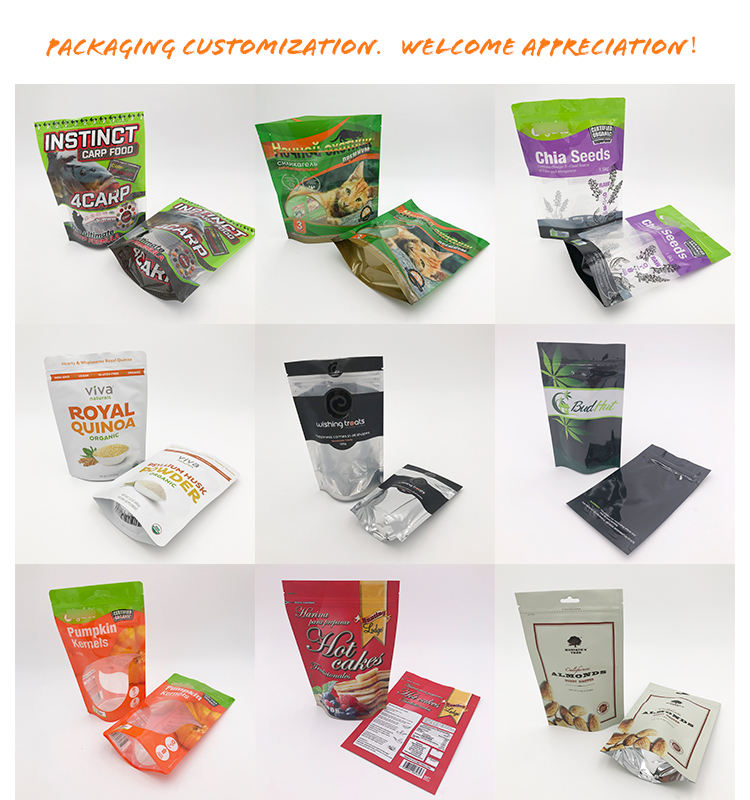

Machine function: three side seal bag, double zipper, double stand up pouch, double single sheet film fold stand up pouch, double cutting system which controlled by servo motor
Four servo motor of traction, equipped with Panasonic PLC, main driven adopts AC motor with Panasonic inverter, temperature controller 20 routs . Unwinder with constant tension controller.
Suitable material: BOPP, COPP, PET, PVC , NYLON ETC MULI-LAYER LAMINATED MATERIAL, ALU.LAMINATED FILM, PAPER-PLASTIC LAMINATED MATERIAL ETC...
MECHNICAL SPEED: 160 TIMES/MIN
LINE SPEED : ≤40M/MIN
Max. length : 400mm, exceed this size, need to use 6 skips
Max.width: 600mm
Max.size of unwinder: D750*1250mm
Location : ≤ +/-0.5mm
Sealing knife quantity: vertical sealing 2 group up and down heating, cooling up and down
                  vertical sealing 4 group up and down heating, cooling up and down
                  horizontal sealing 3 group up and down heating, 2 group cooling up and down
                   horizontal sealing for zipper adopt the ultrasonic wave sealing device.
Heating : 20 pcs
Tempeture arrange: 0~300 degrees
Total power: 55.55kw
Machine size: 14500 *2300*1950mm
Weight : 7500 kgs
Frame thickness: 10mm thick
Machine color: white frame, stainless cover,
